NOTE - click on any highlighted thumbnail photo to see a larger version:

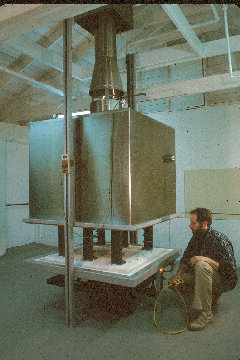

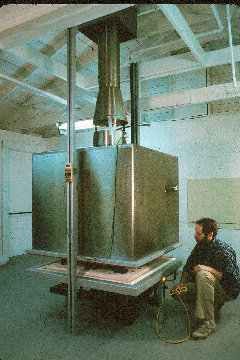

     "I designed this kiln to facilitate firing the plates and other flatware that I love to make, as well as to be fuel efficient and easy to load. It turned out to be far more useful than I imagined, and I have built a dozen more in America and Canada.
     "The furniture was designed specifically for this kiln. A fuller discussion of the design was published in the September 2001 Ceramics Monthly, and at their site:"

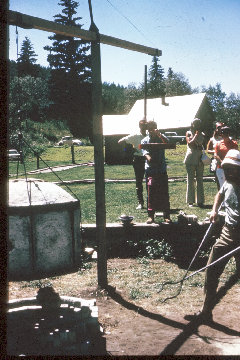

"The idea came from using a tea cozy, later building this lifting Raku kiln at Anderson Ranch, and seeing film of a lifting fiber annealing oven."





"Of course, it helped to remember how I got into pottery at Oregon."b060.jpg (38504 bytes)

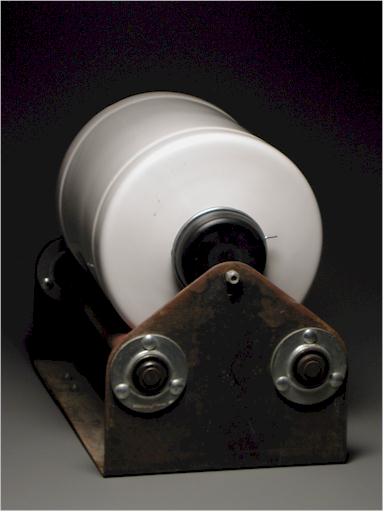

"I built my ball-mill to use both 1.5 and 3 gallon jars for grinding the natural materials I prospect and mine. It has a variable speed controller to tune the speed for each size of jar. I intend to build a fifteen-gallon mill for larger batches of my wild porcelain." dscn1980-small.jpg (18909 bytes) dscn1981-small.jpg (20291 bytes)
HANK'S BALL MILL, up to 3 gallon capacity jars, variable speed, chain-driven

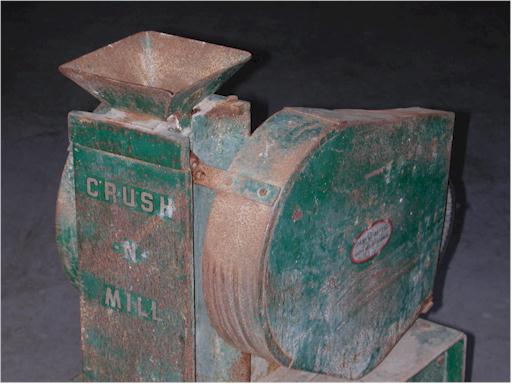

dscn1970-small.jpg (30228 bytes) "I borrow this machine whenever I need to crush rock down to 10 mesh for ball-milling. It has a 5-horse motor, crushing up to half a ton per day of rough ore."
"CRUSH-N-MILL", 5 Hp Jaw Crusher, 10 mesh and below

NOTE - click on any highlighted thumbnail photo to see a larger version:

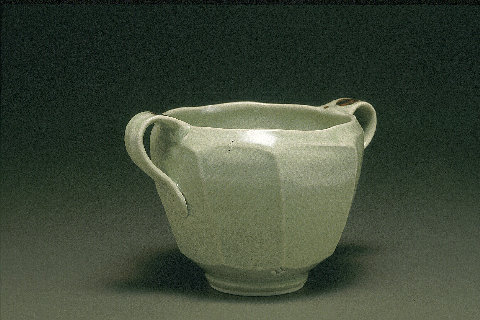

"Joe Bennion demonstrated soft-facetting several years ago, and after trying his method for awhile, I developed 'Hank's WireTool' for the purpose.
057page57.jpg (40755 bytes) 056page56.jpg (49587 bytes) 061page61.jpg (44604 bytes) 082page82.jpg (28226 bytes)

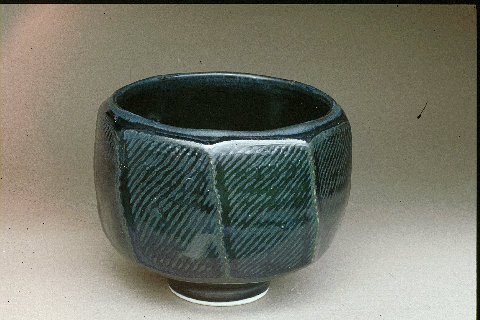

"My tool has interchangeable wires which yield different patterns in the wet clay, and the patterns stretch out when the piece is further opened with a rib from the inside. (availability)"




b013 b013.jpg (26465 bytes) b012b012.jpg (30715 bytes)

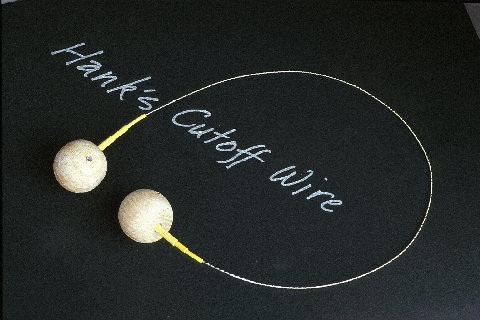

"I make 'Hank's CutOff Wires' in different lengths and patterns for separating the pot from the wheelhead or a batt. When used in tandem with Hank's Roller Trimmer, the bottom of a plate may take on extraordinary beauty & utility. (availability)"


b001.jpg (42967 bytes) "I adapted my ball-bearing vulcanizing roller for a method of trimming based on clay displacement rather than clay removal. The method produces a compacted footring while leaving the original wirecut intact and showing through semi-opaque glazes. (availability)"
HANK'S ROLLER TRIMMER, ball bearing, single yoke, 1.5" x 1.5" plated roller. See next page, below, for a tutorial on use of the Roller Trimmer

(Coming soon: pic of Hank's Trimming Stick with pots set around it)

"I make special trimming sticks to roll the excess clay around the bottom of cylindrical forms into a footring. Suggest you make one too."

next page: Tool Tutorials
